Tecnair LV

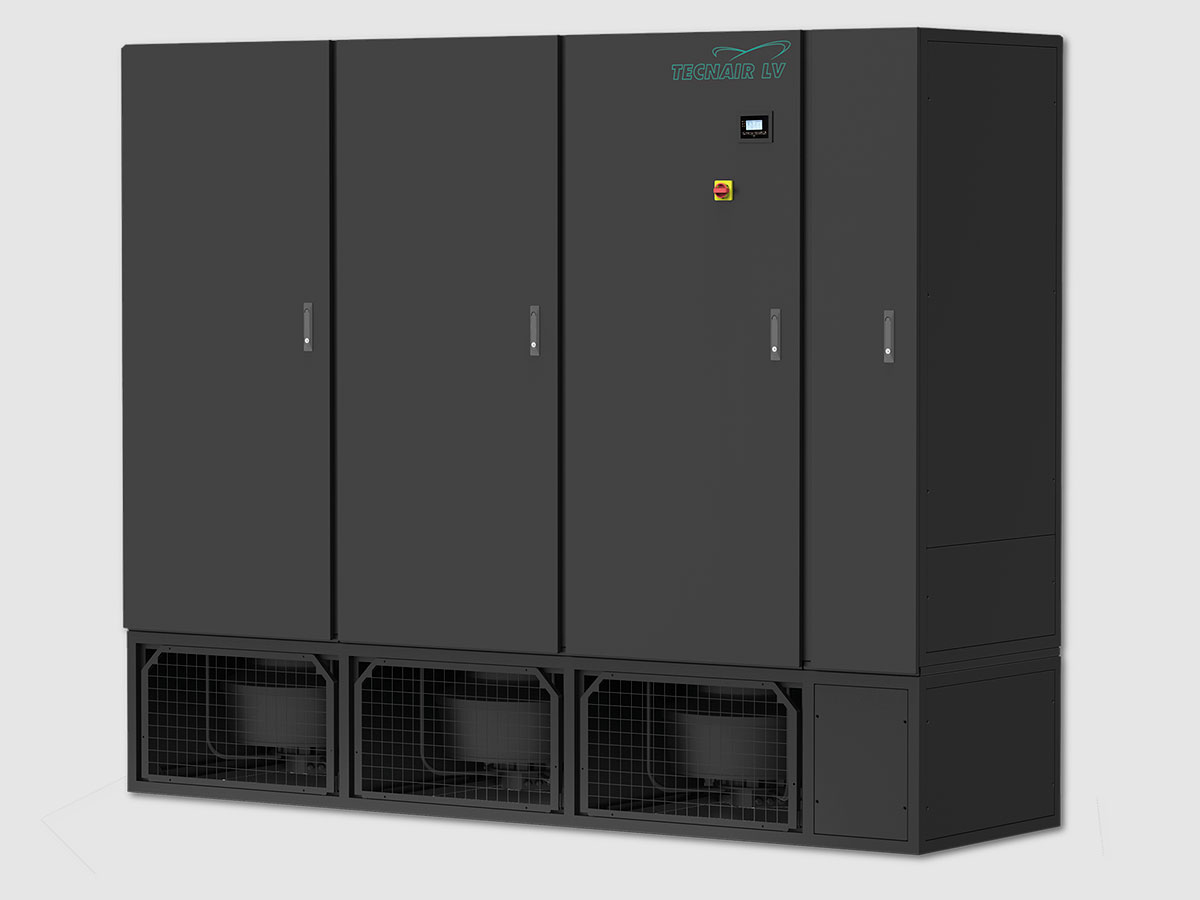

G Series - Close control air conditioners for large data centres

General Features

  • A high ratio of delivered cooling capacity to the footprint
  • Improved air distribution in the raised floor
  • Very low fan energy consumption

Direct expansion:

  • Cooling capacity: from 40 to 100 kW
  • Airflow: from 9.000 to 20.000 m3/h

Chilled water:

  • Cooling capacity: from 40 to 150 kW
  • Airflow: from 9.000 to 40.000 m3/h

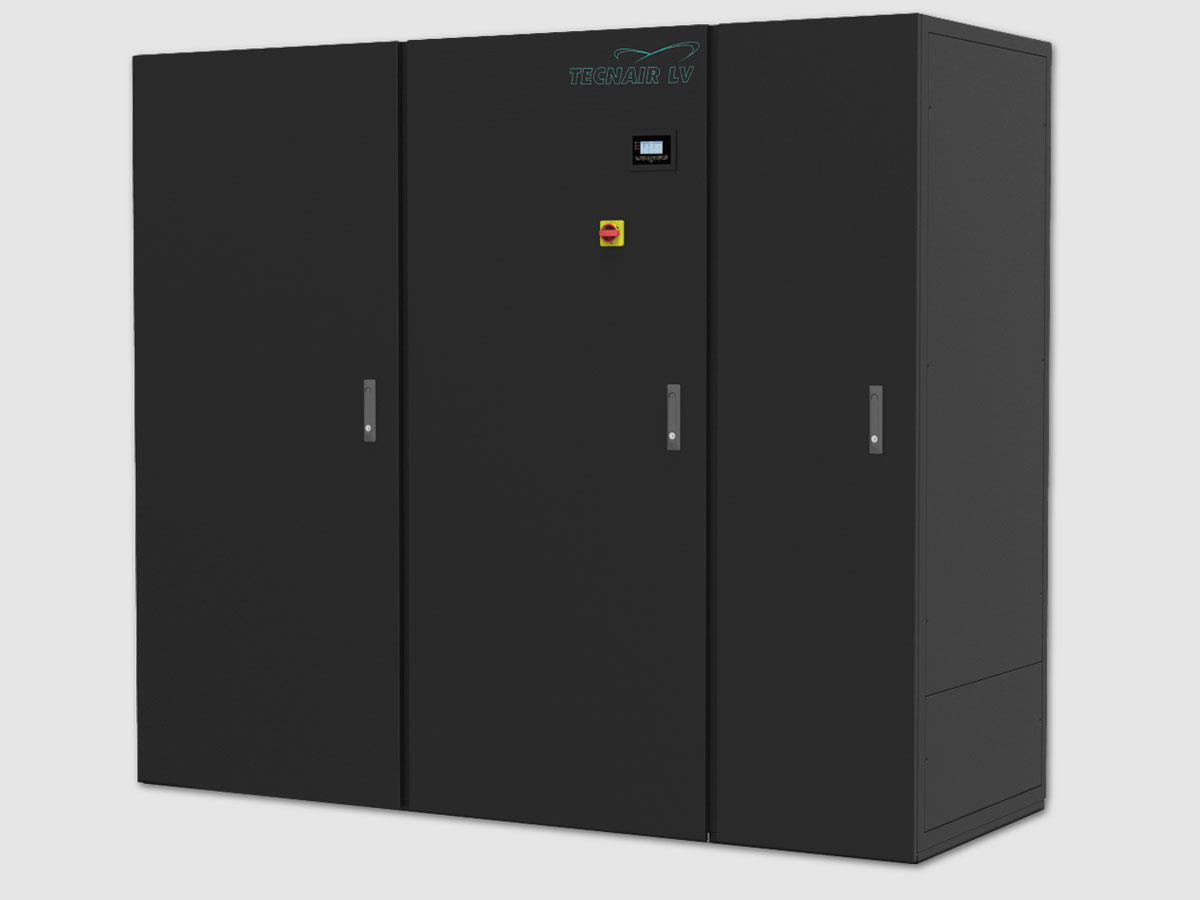

P Series - Close Control Units

General Features

  • Close control of temperature and humidity
  • Very high EER (Energy Efficiency Ratio), low CO2 emissions into the environment and low operating costs
  • High flexibility of use and a wide range

Direct expansion:

  • Cooling capacity: from 6 to 100 kW
  • Airflow: from 2.000 to 21.000 m3/h

Chilled water:

  • Cooling capacity: from 10 to 200 kW
  • Airflow: from 2.000 to 35.000 m3/h

R Series - Close control air conditioners for “in-row” installation

General Features

  • Air flow distribution as close as possible to servers
  • Rear intake from the hot aisle and front supply to the cold aisle
  • Front and rear accessibility for easy maintenance
  • Cooling, electric and water top/bottom connections
  • Dimension: 300 and 600 mm wide models

Direct expansion:

  • Cooling capacity: from 10 to 40 kW
  • Airflow: from 3.000 to 8.000 m3/h

Chilled water:

  • Cooling capacity: from 20 to 35 kW
  • Airflow: from 6.000 to 9.000 m3/h

For more details, visit Tecnair LV
